METPOINT® | Tecnología de sensores

Compara

SD Series Dew Point Sensors
Measuring Principle
Capacitive polymer sensor
Measured Variables
Dew point
Intended Measurement Medium
Compressed air or gases
Measurement Range
-76 to +86 °F td
-22 to +158 °F measured gas temp.
0 to 100% rH
Measuring Accuracy
± 3.5 °F at -40 °F PDP
± 0.9 °F at +15 to +86 °F

Max. Operating Pressure
725 psig
Operating Temperature
-22 to +158 °F

Storage Temperature
-40 to 185 °F
Connection Size | Type
¼" Quick Disconnect Adapter
Analog Output
4...20 mA
Digital Output
Yes
Protection Class
IP65
FS Series Flow Sensors
Measuring Principle
Calorimetric measurement
Measured Variables
Flow and consumption
Intended Measurement Medium
Compressed air or gases
Measurement Range
0.12 to 23,275 scfm


Measuring Accuracy
± 1.5% of reading


Max. Operating Pressure
232 psig standard (725 psig optional)
Operating Temperature
Housing: -22 to +176 °F
Sensor probe: -22 to +284 °F
Storage Temperature
-
Connection Size | Type
½" BSP (ISO 228/1)
Analog Output
4...20 mA
Digital Output
Yes
Protection Class
IP65
SP Series Pressure Sensors
Measuring Principle
Stainless steel thin-film technology
Measured Variables
Relative pressure
Intended Measurement Medium
Gases or liquids
Measurement Range
0 to 232 psig (0 to 870 psig optional)


Measuring Accuracy
≤ ± 0.5%


Max. Operating Pressure
725 psig
Operating Temperature
-40 to +185 °F

Storage Temperature
-40 to 185 °F
Connection Size | Type
¼" BSP
Analog Output
4...20 mA
Digital Output
No
Protection Class
IP67
OCV Series Oil Vapor Sensors
Measuring Principle
Photoionization detection
Measured Variables
Residual oil content
Intended Measurement Medium
Compressed air
Measurement Range
≤ 0.01 to 2.50 mg/m3


Measuring Accuracy
≤ 0.01 to 0.5 mg/m3 ±0.003 mg/m3
≥ 0.5 to 1.0 mg/m3 ±0.10 mg/m3
≥ 1.0 to 2.5 mg/m3 ±0.10 mg/m3
Max. Operating Pressure
232 psig standard (580 psig optional)
Operating Temperature
41 to 122 °F

Ambient Temperature
41 to 113 °F
Connection Size | Type
1/8” female thread, ISO 228-1 standard
Analog Output
4-20 mA analog output
Digital Output
Yes
Protection Class
IP 54

Vídeos de la función METPOINT

METPOINT® DPM

Con la temperatura, la humedad relativa y el punto de rocío, los dispositivos móviles y fijos de medición del punto de rocío fabricados por BEKO TECHNOLOGIES miden con precisión los parámetros críticos en el aire comprimido y otros gases.

Encuentre aún más vídeos en nuestro canal de YouTube.

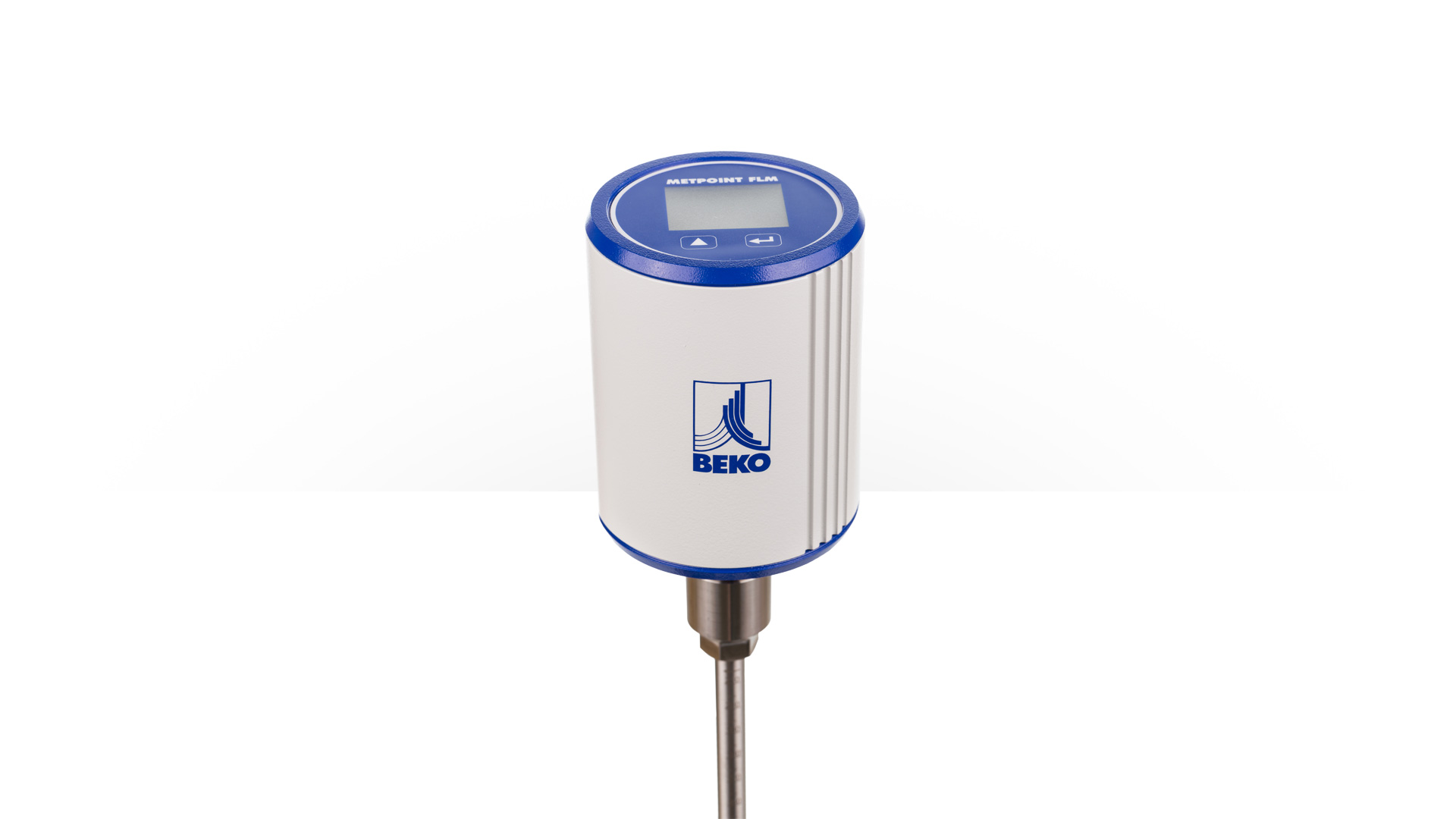

METPOINT® FLM

Se instalan dos sensores de temperatura en serie en la dirección del flujo. El primer sensor de temperatura mide la temperatura de proceso actual del aire comprimido, mientras que el segundo sensor se calienta eléctricamente a una temperatura que es 40 K superior a la del primer sensor. Los caudales más elevados provocan un descenso más rápido de la temperatura en los sensores, por lo que el calentador eléctrico del segundo sensor debe aumentar su potencia calorífica. La energía eléctrica necesaria para mantener la diferencia de temperatura es proporcional al caudal volumétrico. Este consumo de energía se convierte para proporcionar las mediciones de caudal correspondientes.

Encuentre aún más vídeos en nuestro canal de YouTube.

METPOINT® OCV

METPOINT® OCV es un revolucionario sensor de contenido de hidrocarburos en línea. Esta tecnología de medición es capaz de detectar hidrocarburos hasta un rango tan bajo como 0,0006 mg/m3 en una corriente de aire comprimido.

Encuentre aún más vídeos en nuestro canal de YouTube.

Características y ventajas de METPOINT

Alta precisión de medición
  • Los instrumentos de medición están diseñados específicamente para aplicaciones de aire comprimido
Fiabilidad independiente
  • Medición fiable e independiente de la temperatura y la presión, sin necesidad de ajustes
Conectividad de amplio alcance
  • Desde el registrador de datos hasta la conexión en red y los sistemas móviles
Pantalla fácil de usar
  • Pantallas multifuncionales fáciles de usar y ampliables por el usuario
Gran variedad de aplicaciones
  • Las versiones portátiles y fijas ofrecen a los usuarios la máxima flexibilidad
