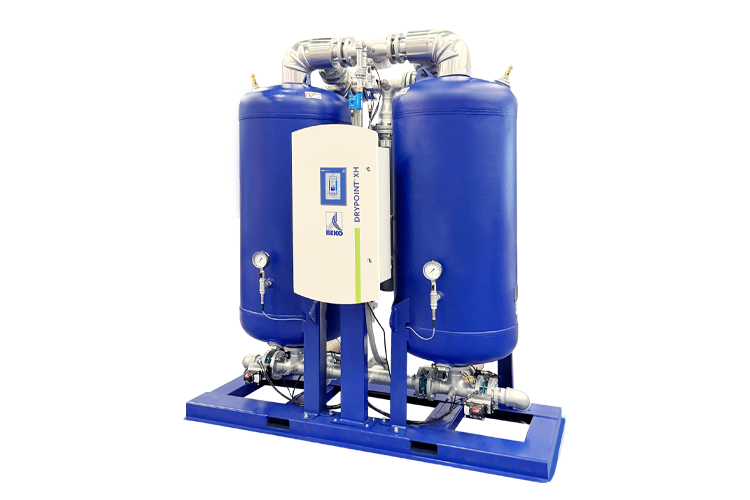

DRYPOINT® XH | Heated Purge Desiccant Dryers
XHe Series - Economy Heated Purge
Flow Rate
| 100 - 3,200 scfm |
Standard Outlet Pressure Dew Point
| -40 °F |
Maximum Inlet Air Temperature
| 120 °F |
Maximum Operating Pressure
| 150 psig |
Average Purge Air
| 7% |
Available Options
| Mounted filters, 3-valve bypass (threaded models), Standalone Filtration Packages (flanged models), Indoor Tower insulation, Valve position indicators (flanged models), Cover3More extended warranty |
XHi Series - Intelligent Heated Purge
Flow Rate
| 100 - 3,200 scfm |
Standard Outlet Pressure Dew Point
| -40 °F |
Maximum Inlet Air Temperature
| 120 °F |
Maximum Operating Pressure
| 150 psig |
Average Purge Air
| 3-7% |
Available Options
| Mounted filters, 3-valve bypass (threaded models), Standalone Filtration Packages (flanged models), Dew point demand control, Indoor Tower insulation, Valve position indicators (flanged models), Cover3More extended warranty |
DRYPOINT® XH Features and Benefits
Customization
- With a wide standard range up to 3,200 scfm, a variety of options plus our custom engineering capabilities, we have a perfect solution for every application
Patent-pending intelligent algorithm
- Monitors operating conditions to optimize the amount of purge air used for regeneration, yielding maximum performance and greatest possible energy savings for a heated purge type dryer
Advanced Controller
- The intuitive, feature rich BEKOTOUCH 2 controller is standard with full-color, 7” touchscreen display, data trends, spare parts list, and more
Reliable Design
- Designed and built in the U.S.A. with premium components like stainless steel check valves and high performance butterfly valves (flanged models)
Adaptive Heating and Cooling
- Electronic proportional-type purge flow control valve optimizes the heating and the cooling purge air used to regenerate the bed
