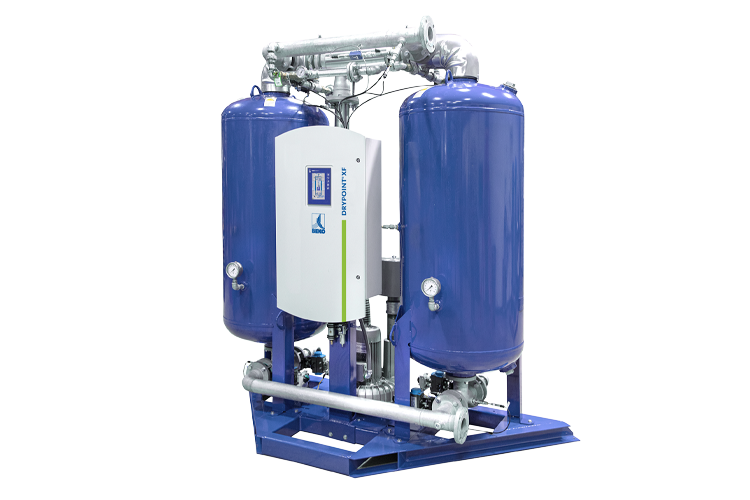

DRYPOINT® XF | Heated Desiccant Dryers
XFe Series - Economy Heated Blower Purge
Flow Rate
| 800 - 6,000 scfm |
Standard Outlet Pressure Dew Point | Optional
| -40 °F |
Maximum Inlet Air Temperature
| 120 °F |
Maximum Operating Pressure
| 150 psig |
Average Purge Air
| 3% |
Available Options
| Filtration package, Piping kit for Filtration packages, Stainless steel tubing, 3-valve bypass, Outdoor package, Dew point demand control, Tower insulation, Valve position indicators, Cover3More extended warranty |
XFi Series - ecoIntelligent Heated Auto-purge
Flow Rate
| 800 - 6,000 scfm |
Standard Outlet Pressure Dew Point | Optional
| -40 °F |
Maximum Inlet Air Temperature
| 120 °F |
Maximum Operating Pressure
| 150 psig |
Average Purge Air
| 0-3% |
Available Options
| Filtration package, Piping kit for Filtration packages, Stainless steel tubing, 3-valve bypass, Outdoor package, Tower insulation, Cover3More extended warranty |

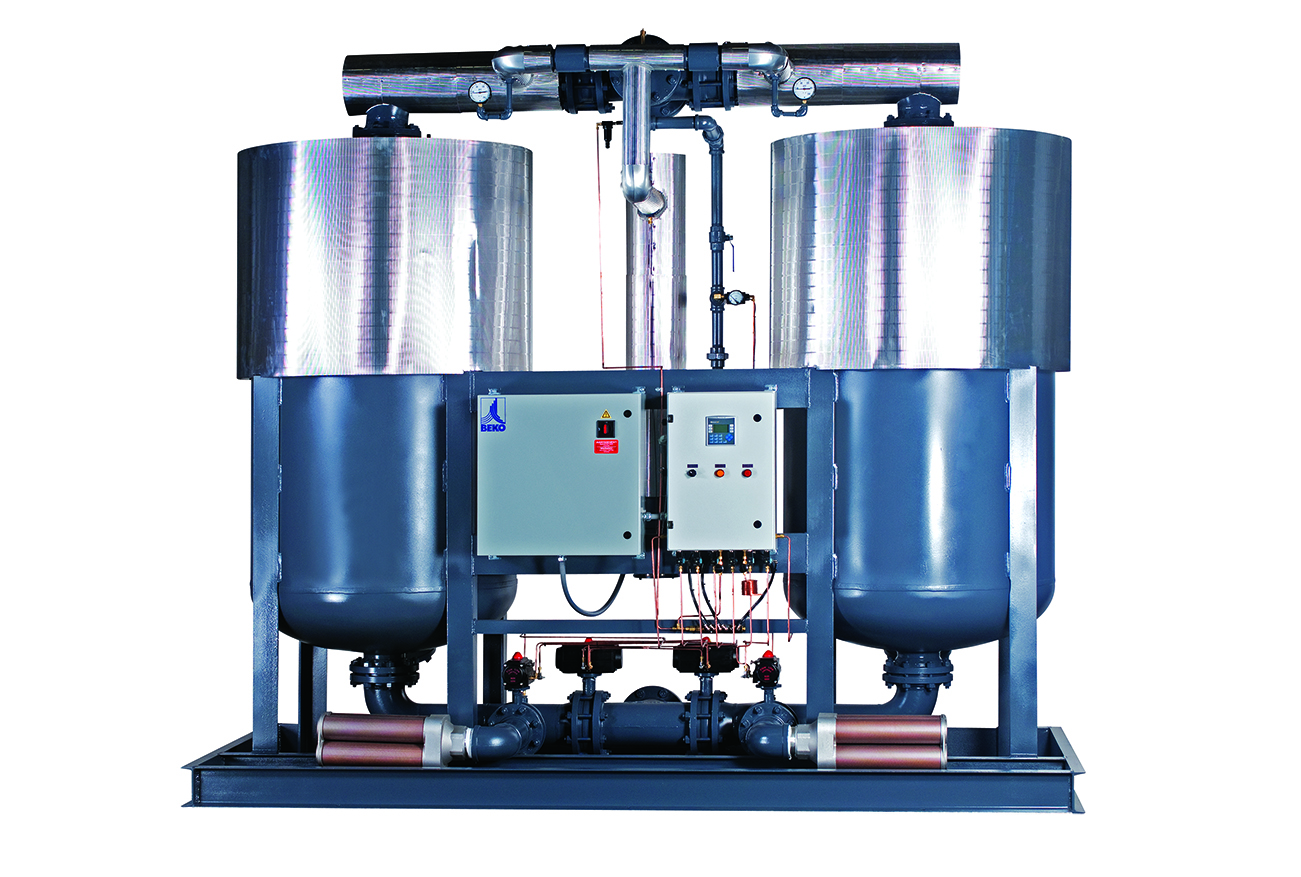

ACH Series - Heated Purge
Flow Rates
| 70 - 4,050 scfm |
Standard Outlet Pressure Dew Point | Optional
| -40 °F | -80 °F |
Maximum Inlet Air Temperature
| 120 °F |
Maximum Operating Pressure | Optional
| 150 psig | 250 psig |
Average Purge Air
| 7% |
Available Options
| Mounted filters, 3-valve bypass, Dew point demand control, Tower insulation, Cover3More extended warranty |
DRYPOINT® XF Features and Benefits
Auto-purge Rate & User Modes
- Auto-adjusting purge rates and user presets for fully customizable operation
Advanced ecoIntelligent PLC
- Automatically calculates the most energy efficient mode of operation at any given time
Maximum Energy Savings
- Up to 90% energy savings compared to a conventional regenerative dryer
BEKOTOUCH 2 Interface
- Easy to read, 7" touch screen display with animated P&ID plus free firmware updates
Modular Configuration
- Engineered to be quickly and easily customized to suit any application with reduced lead-times
