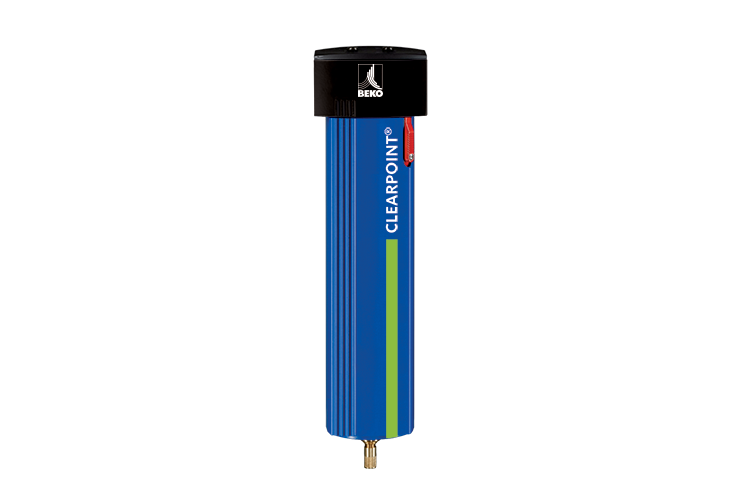

CLEARPOINT®
Water Separators
Flow Rates
| 25 - 1,500 scfm |
Maximum Operating Pressure
| 232 psig |
Standard Pipe Connection Sizes
| 3/8" - 3" NPT |
Housing Material
| Anodized, powder coated aluminum |
Available Options
| BEKOMAT® drain, Cover3More extended warranty |
Flow Rates
| 1,900 - 21,000 scfm |
Maximum Operating Pressure
| 230 psig |
Standard Pipe Connection Sizes
| 4” - 12” Flange |
Housing Material
| Powder coated carbon steel |
Available Options
| Cover3More extended warranty |
Flow Rates
| 100 - 2,065 scfm |
Maximum Operating Pressure
| 725 psig |
Standard Pipe Connection Sizes
| 3/8” - 2” NPT |
Housing Material
| Anodized, powder coated aluminum |
Available Options
| BEKOMAT® drain, Drain connection kit, Cover3More extended warranty |
CLEARPOINT® Function Video
In-line water separators are typically used at after coolers and refrigeration dryers in order to remove bulk liquid that is present in the compressed air pipework as a result of condensate being formed. All compressed air systems create some level of condensate through the basic function of compression. Poor water or condensate management can result in process contamination, component failure, and high differential pressure. All of which can be very costly when compared to the cost of removal.
Find even more videos on our YouTube channel.
CLEARPOINT® Features and Benefits
Energy Efficient by Design
- Ultra-low differential pressure for all water separator insert designs
Flow Optimized Housing
- Unique curved inlet design was engineered for the lowest possible differential pressure
Maximum Reliability
- Double threaded filter head, extruded, fully anodized, and zero air loss drain option
Performance
- Superior performance and retention rates even for flows down to 30% or up to 150%
Simplified Maintenance
- Simple, push-fit element designs without tie-rods — we considered the details in the design
