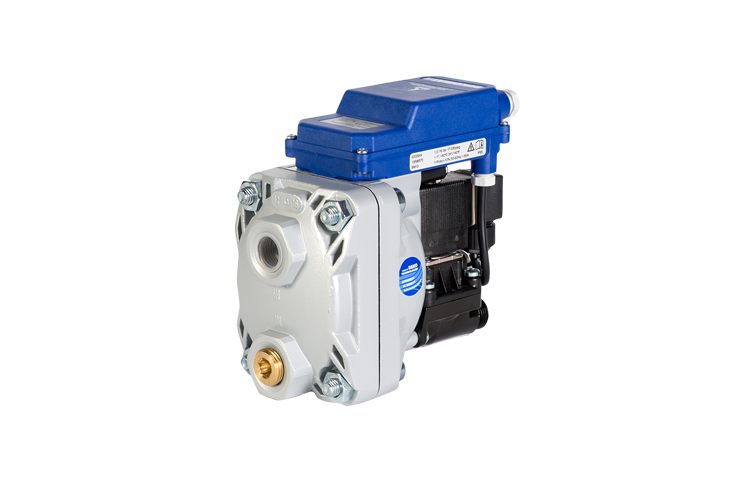

BEKOMAT® | Zero Air Loss Condensate Drains
Standard Series
Standard Minimum/Maximum Operating Pressure
| 12-232 psig |
Standard Minimum / Maximum Operating Temperature
| 33 - 140 °F |
Compressor Flow Rate
| 100 - 50,000 scfm |
Typical Application Areas
|
At the compressor, dryer, and filter |
Diaphragm Material
| Viton® |
Maintenance Part Type
| Service Unit or Wearing Parts Kit |
Available Options
| Heater, Insulation sleeve or shell, Cover3More extended warranty |
PN and E Series
Standard Minimum / Maximum Operating Pressure
| 12 - 912 psig |
Standard Minimum / Maximum Operating Temperature
| 33 - 140 °F |
Compressor Flow Rate
| 280 - 50,000 scfm |
Typical Application Areas
| High pressure systems or with highly aggressive condensate |
Diaphragm Material
| Viton® |
Maintenance Part Type
| Wearing Parts Kit |
Available Options
| Heater, Insulation sleeve or shell, Cover3More extended warranty |

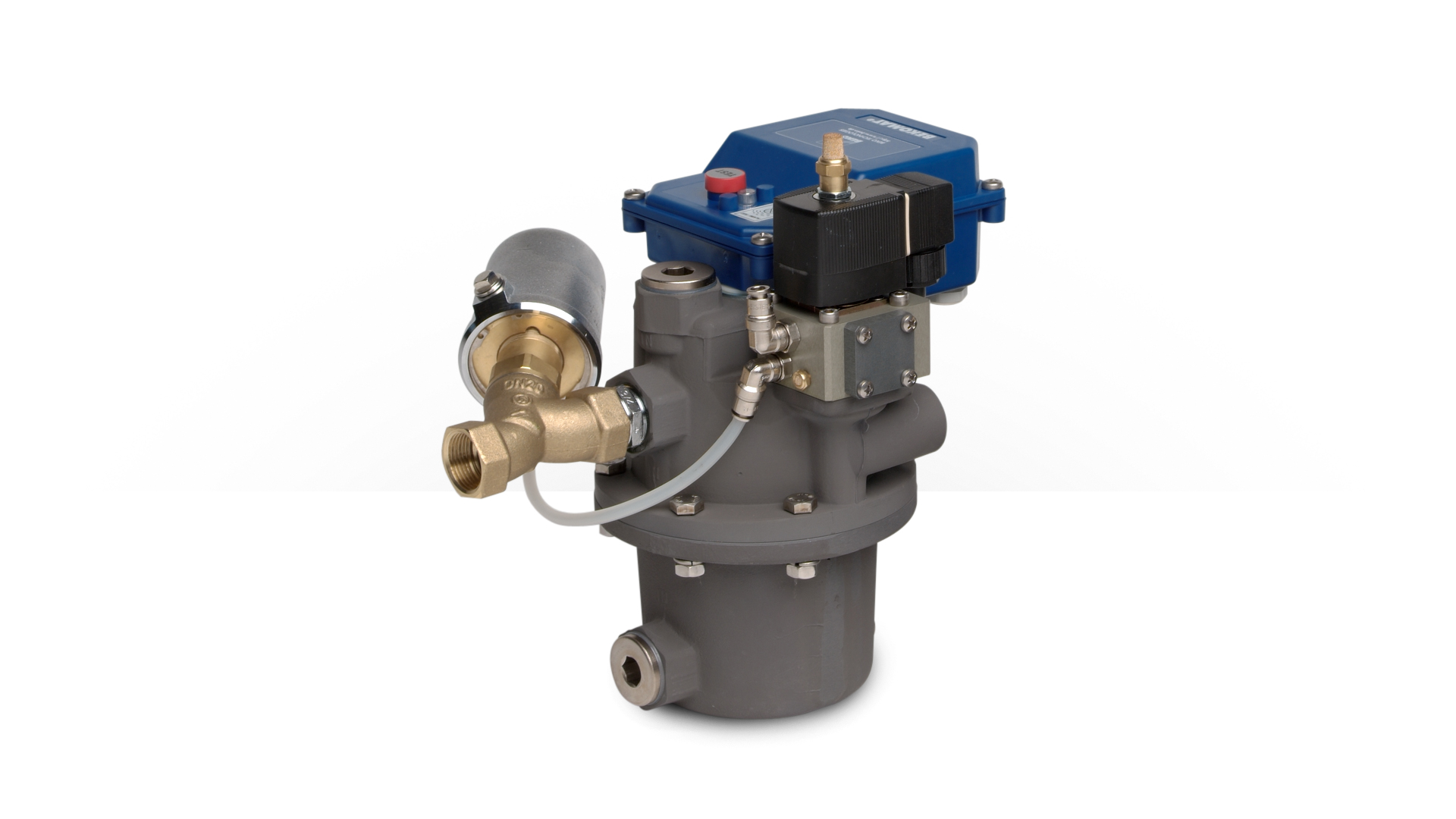

CV, NLV, and V Series
Standard Minimum / Maximum Operating Pressure
| 0 - 360 psig |
Standard Minimum / Maximum Operating Temperature
| 33 - 140 °F |
Compressor Flow Rate
| 2,000 - 50,000 scfm |
Typical Application Areas
| For use with centrifugal compressors or vacuum systems |
Diaphragm Material
| Viton® |
Maintenance Part Type
| Wearing Parts Kit |
Available Options
| Heater, Cover3More extended warranty |
Specialty Series
Standard Minimum / Maximum Operating Pressure
| 12 - 232 psig |
Standard Minimum / Maximum Operating Temperature
| 33 - 140 °F |
Compressor Flow Rate
| 4,500 - 50,000+ scfm |
Typical Application Areas
| Explosive atmospheres, moisture indication, and level sensing |
Diaphragm Material
| Viton® |
Maintenance Part Type
| Wearing Parts Kit |
Available Options
| 12 Vdc intrinsicly safe power supply, Isolation amplifier, Heater, Cover3More extended warranty |
BEKOMAT® Function Video
The BEKOMAT® drains off condensate without the loss of compressed air, thus reducing energy costs and CO2 emissions. This is made possible by the integrated capacitive sensor, smart electronics for volume-controlled condensate discharge, and a proven pilot controlled solenoid valve with a specially designed diaphragm.
Find even more videos on our YouTube channel.
BEKOMAT® Features and Benefits
True Zero Air Loss
- Patented operating principle guarantees maximum energy savings
Highest Reliability
- Integrated sieve eliminates any concern about dirt, the need for a Y-strainer, and extra maintenance
Lowest Maintenance
- Reduce overall time and costs and make maintenance fast and easy
Sensor Controlled
- Ensures intelligent operation at all times with the ability to automatically clear clogs and debris
Integrated Alarm
- Visual status indication is given on the drain and can be wired for remote access
Fully Automatic
- Continuously monitors both level and function for autonomous operation
